APPLICATIONS：

> Water plant.

> Circulation in air-condition water system,

cooling and heating systems.

> Pipe net system of supplying heated water.

> Constructions.

> Irrigation and drainage pumping station.

> Power station and mine etc.

> Industrial water supply system.

> Fire prevention system.

> Marine and offshore engineering.

> Seawater desalination.

SPECIFICATIONS:

> Pump Suct. Size: DN125 to DN1200 mm

> Pump Disc. Size: DN80 to DN1000 mm

> Capacity Q: 22 to 11600 m3/h

> Head H: 7 to 200 m

> Working Pressure: ≤2.5 MPa

> Operating Temperature: -20℃ to +105℃

> Operating speed: 8P-730rpm, 6P-980rpm, 4P-1450rpm, 2P-2950rpm

> Matched Power: 3 to 2000 kW

Product Standard: ISO5199

GENERAL DESCRIPTION:

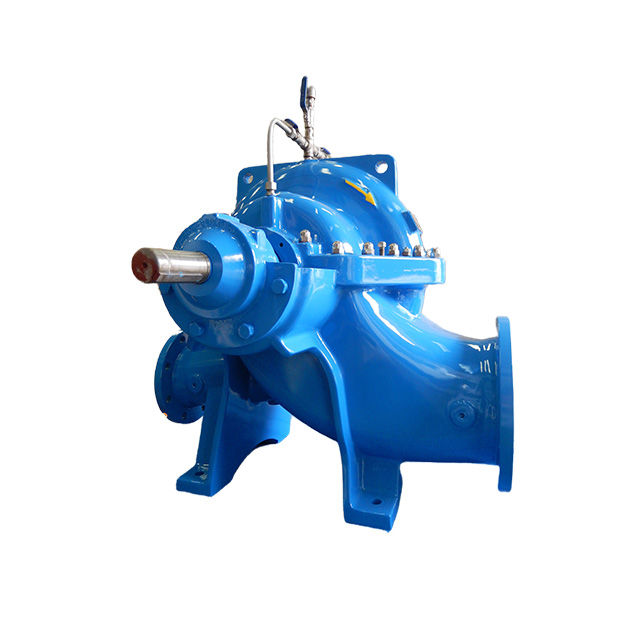

The type SCP are horizontal split casing volute type, single stage, double suction centrifugal pumps designed for water works, drainage, general service and circulating applications. They can be used with motor, steam turbine and gasoline or diesel engine drives.

They are provided for delivering clear water without solid particles or other liquid which is physically and chemically similar to clear water.
