APPLICATIONS：
> Process water systems
> Washing and cleaning systems
> High-pressure washdown systems
> Boiler feed and condensate systems
> Ultra-filtration systems
> Reverse osmosis systems.
SPECIFICATIONS:
> Pump inlet: DN25 – DN100 mm
> Pump outlet: DN25 – DN100 mm
> Capacity Q range: 0.4 m3/h to 120 m3/h
> Head H range: 6 m to 309m
> Operating speed: 2900rpm or 3500rpm, VFD
> Power P range: 0.37 KW to 45 KW
> Max. Viscosity: 20cP, Normal temperature (24℃)
> Working Temperature Range: - 20℃ to 180℃
GENERAL DESCRIPTION:

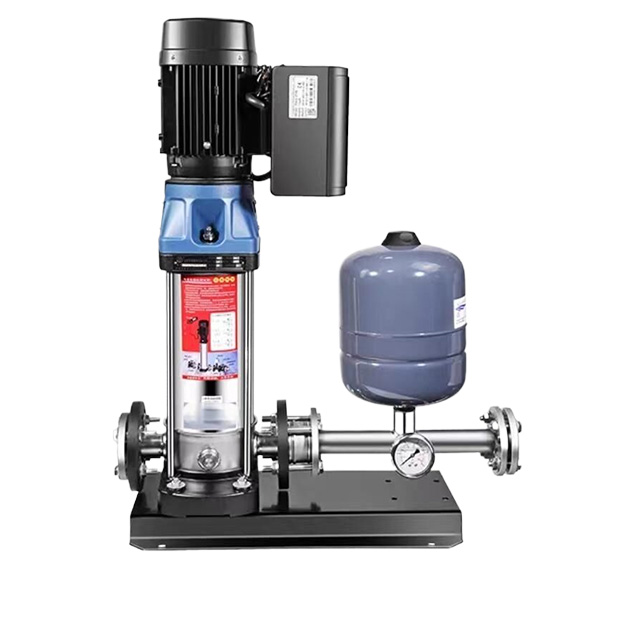

CDL / CDLF is a kind of vertical non-self-priming multistage centrifugal pump, which is driven by a standard electric motor (TEFC).
The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet &outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane.
This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
